DIN Standard Fasteners, DIN 94 – Split Pins Standard & Weight Chart – China Inconel Bolts Inc.
DIN 94 – Split Pins are solid steel rods with a taper down the length to a smaller diameter at one end. China Inconel Bolts Inc. is one of India’s leading Fastener Manufacturers. We carries German DIN Standard Fasteners. We have a large stock of DIN Fasteners. DIN Fasteners are exported to Saudi Arabia, Europe, the United States, Canada, Mexico, Africa, Oman, Qatar, the United Arab Emirates, Australia, Germany, France, Italy, and other countries.
Equivalent Standards
- ISO 1234
- CSN 21781
- PN 82001
- UNI 1336

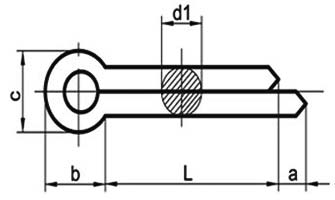

DIN 94 – Split Pins Dimensions Chart
| d |
d1 max. |
d1 min. |
c max. |
c min. |
a max. |
b ˜ |
| 1 |
0.9 |
0.8 |
1.8 |
1.6 |
1.6 |
3.0 |
| 1.2 |
1.0 |
0.9 |
2 |
1.7 |
2.5 |
3.0 |
| 1.6 |
1.4 |
1.3 |
2.8 |
2.4 |
2.5 |
3.2 |
| 2 |
1.8 |
1.7 |
3.6 |
3.2 |
2.5 |
4.0 |
| 2.5 |
2.3 |
2.1 |
4.6 |
4.0 |
2.5 |
5.0 |
| 3.2 |
2.9 |
2.7 |
5.8 |
5.1 |
3.2 |
6.4 |
| 4 |
3.7 |
3.5 |
7.4 |
6.5 |
4.0 |
8.0 |
| 5 |
4.6 |
4.4 |
9.2 |
8.0 |
4.0 |
10.0 |
| 6.3 |
5.9 |
5.7 |
11.8 |
10.3 |
4.0 |
12.6 |
| 8 |
7.5 |
7.3 |
15 |
13.1 |
4.0 |
16.0 |
| 10 |
9.5 |
9.3 |
19 |
16.6 |
6.3 |
20.0 |
| 13 |
12.4 |
12.1 |
24.8 |
21.7 |
6.3 |
26.0 |
DIN 94 – Cotter Pins Weight Chart
| Diameter |
M1 |
M1.6 |
M2 |
M2.5 |
M3.2 |
M4 |
M5 |
M6.3 |
M8 |
M10 |
M13 |
| Length |
| 6 |
0.03 |
|
|
|
|
|
|
|
|
|
|
| 8 |
0.04 |
0.10 |
|
|
|
|
|
|
|
|
|
| 10 |
0.05 |
0.12 |
0.25 |
|
|
|
|
|
|
|
|
| 12 |
0.06 |
0.14 |
0.28 |
0.51 |
|
|
|
|
|
|
|
| 14 |
0.07 |
0.16 |
0.31 |
0.57 |
|
|
|
|
|
|
|
| 16 |
0.08 |
0.18 |
0.34 |
0.63 |
|
|
|
|
|
|
|
| 18 |
0.10 |
0.20 |
0.37 |
0.69 |
1.00 |
|
|
|
|
|
|
| 20 |
|
0.22 |
0.40 |
0.75 |
1.09 |
2.16 |
3.49 |
|
|
|
|
| 22 |
|
0.24 |
0.43 |
0.81 |
1.18 |
2.28 |
3.74 |
|
|
|
|
| 25 |
|
0.27 |
0.47 |
0.90 |
1.31 |
2.52 |
4.00 |
|
|
|
|
| 28 |
|
0.30 |
0.51 |
0.98 |
1.45 |
2.76 |
4.49 |
8.04 |
|
|
|
| 32 |
|
0.34 |
0.56 |
1.10 |
1.64 |
3.07 |
5.00 |
8.90 |
|
|
|
| 36 |
|
|
0.61 |
1.22 |
1.80 |
3.39 |
5.49 |
9.76 |
15.9 |
|
|
| 40 |
|
|
0.66 |
1.34 |
2.00 |
3.71 |
6.00 |
10.60 |
17.2 |
|
|
| 45 |
|
|
|
1.49 |
2.17 |
4.11 |
6.61 |
11.70 |
18.9 |
|
|
| 50 |
|
|
|
1.64 |
2.43 |
4.51 |
7.24 |
12.80 |
20.6 |
|
|
| 56 |
|
|
|
|
2.70 |
5.00 |
8.00 |
14.00 |
22.6 |
38.0 |
69.5 |
| 63 |
|
|
|
|
3.02 |
5.55 |
8.67 |
15.60 |
25.0 |
41.8 |
76.0 |
| 71 |
|
|
|
|
3.38 |
6.20 |
9.86 |
17.30 |
27.7 |
46.2 |
83.4 |
| 80 |
|
|
|
|
3.78 |
6.91 |
11.00 |
19.20 |
30.7 |
51.2 |
91.8 |
| 90 |
|
|
|
|
|
7.71 |
12.20 |
21.30 |
34.1 |
56.7 |
101.0 |
| 100 |
|
|
|
|
|
8.51 |
13.50 |
23.50 |
37.5 |
62.2 |
111.0 |
| 112 |
|
|
|
|
|
9.46 |
15.00 |
26.10 |
41.5 |
66.0 |
122.0 |
| 125 |
|
|
|
|
|
10.50 |
16.60 |
28.90 |
45.9 |
75.9 |
134.0 |
| 140 |
|
|
|
|
|
|
|
32.10 |
51.0 |
84.2 |
148.0 |
